Projects

A selection of Delta-based automation systems designed, built and commissioned by our engineering team across the UAE and the wider region.

Water & pumping · Delta CP2000

Delta CP2000 multi-pump master–slave system

Pump station control panel

A four-drive pumping station built around the Delta CP2000 fan and pump series. One drive acts as master and controls the slaves over the built-in communication link, staging pumps in and out to hold a constant discharge pressure. Duty rotation spreads wear evenly across the pump set, while sleep/wake and dry-run protection cut energy use and protect the pumps at low demand.

4 × Delta CP2000 variable frequency drives in master–slave configuration
Automatic pump rotation and staging to balance running hours
Constant pressure control with built-in PID and transducer feedback
Protection tier with MCCB, MCBs, surge protection and control relays
Local/remote selector, indication lamps and emergency stop on door
Panel cooling, structured wiring and full commissioning on site

Discuss a similar project

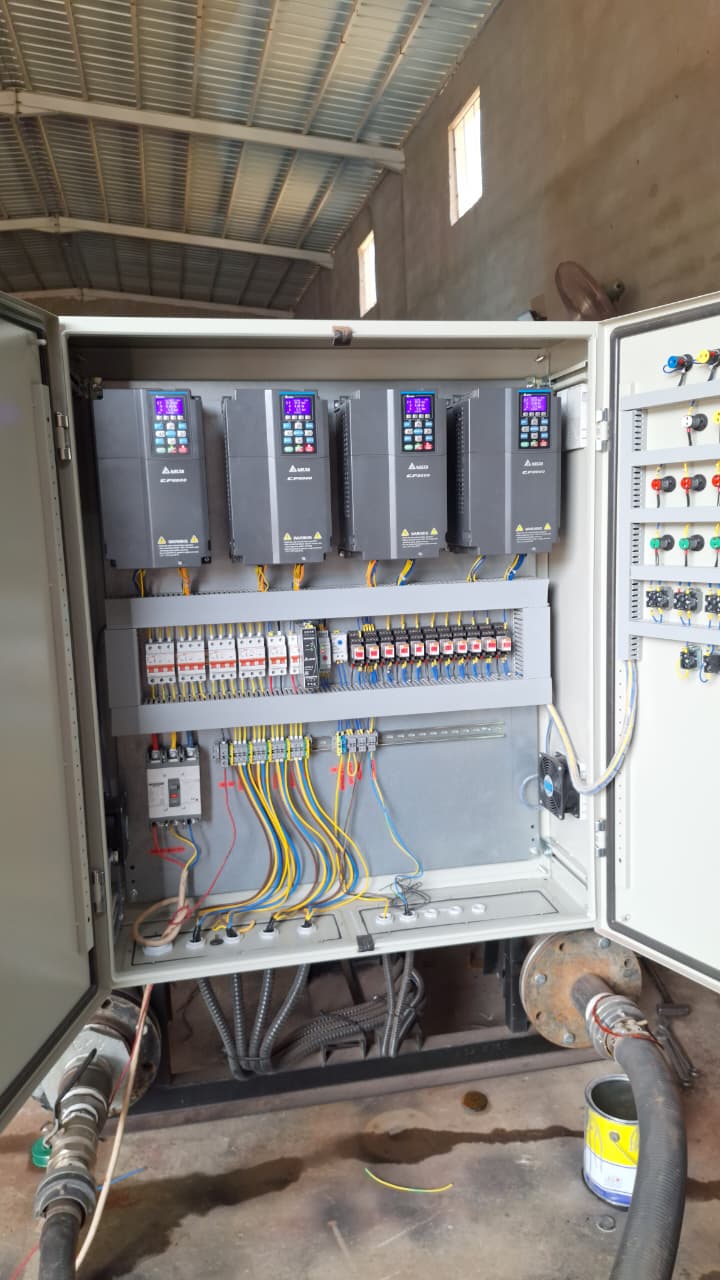

Control panel with four Delta CP2000 drives wired for multi-pump master-slave operation — Four Delta CP2000 drives, protection tier and field wiring inside the pump control panel.

Material handling · Delta MS300

Overhead crane drive panel

Crane control cabinet

A compact overhead crane control cabinet built around two Delta MS300 variable frequency drives for long-travel and cross-travel motions. The panel includes motor protection, control relays, terminal blocks and limit-switch interfaces for safe hoist operation.

2 × Delta MS300 drives for precise crane traverse control
Motor circuit breakers and contactors for each motion axis
DVP-PS02 power supply for stable 24 V control voltage
Limit-switch and emergency-stop safety chain
Fan-cooled enclosure with cable glands and busbar distribution
Commissioned for overhead crane duty in an industrial facility

Discuss a similar project

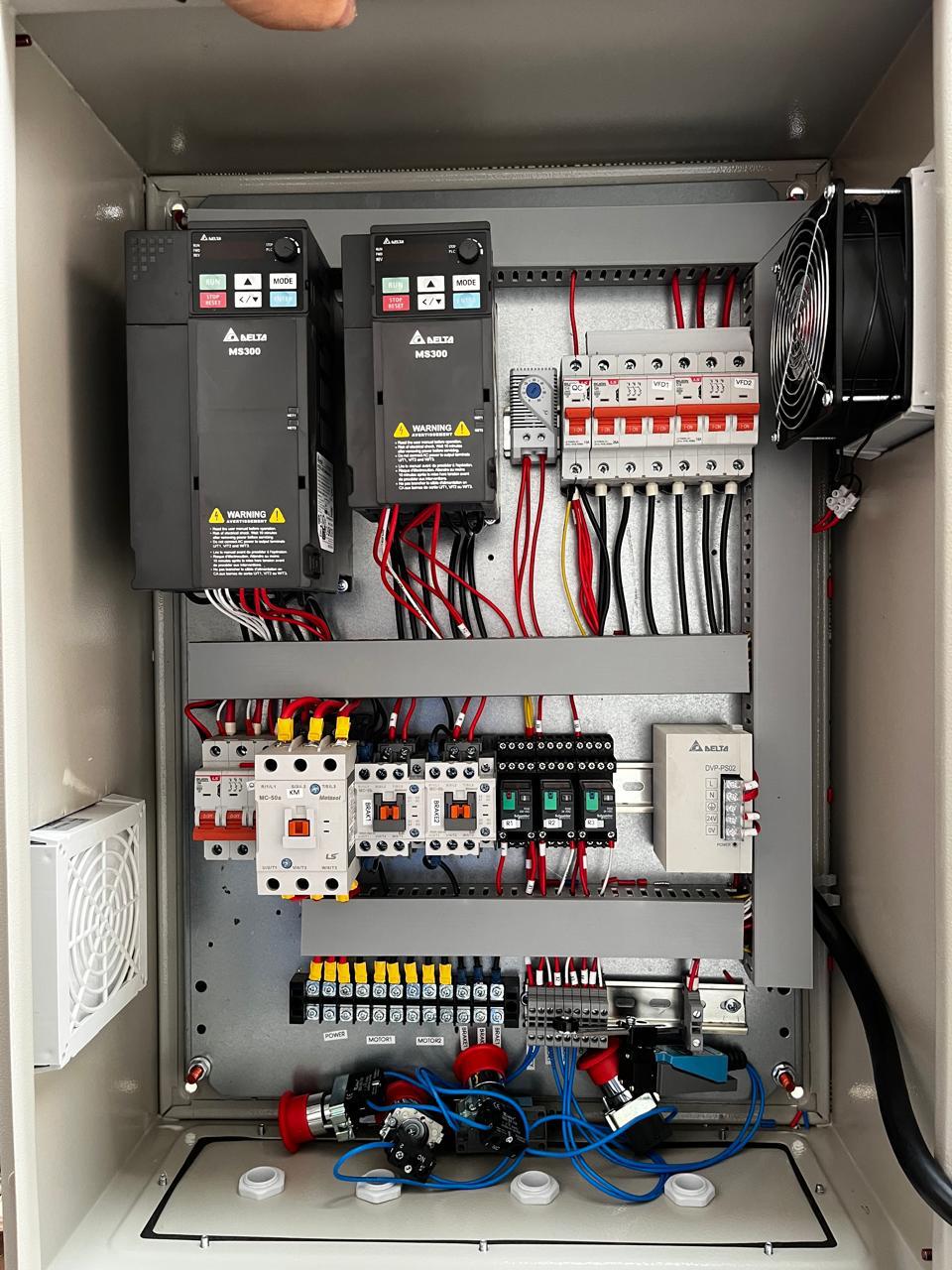

Overhead crane control panel with two Delta MS300 drives, contactors and power distribution — Two Delta MS300 drives, motor protection and field wiring inside the crane control cabinet.

HVAC & ventilation · Delta MS300

Ventilation fan drive panel

Fan / AHU control panel

A three-drive ventilation panel controlling supply, return and exhaust fans. Each Delta MS300 drive is fed through a dedicated breaker/contactor branch, allowing individual fan control while sharing a common DC bus and braking configuration for energy-efficient HVAC operation.

3 × Delta MS300 drives for independent fan speed control
Schneider motor circuit breakers and contactors per fan
Common DC bus and braking resistor arrangement
Panel cooling fan and DIN-rail terminal distribution
Built for HVAC, AHU or ventilation applications
Ready for BMS integration via RS-485 / Modbus

Discuss a similar project

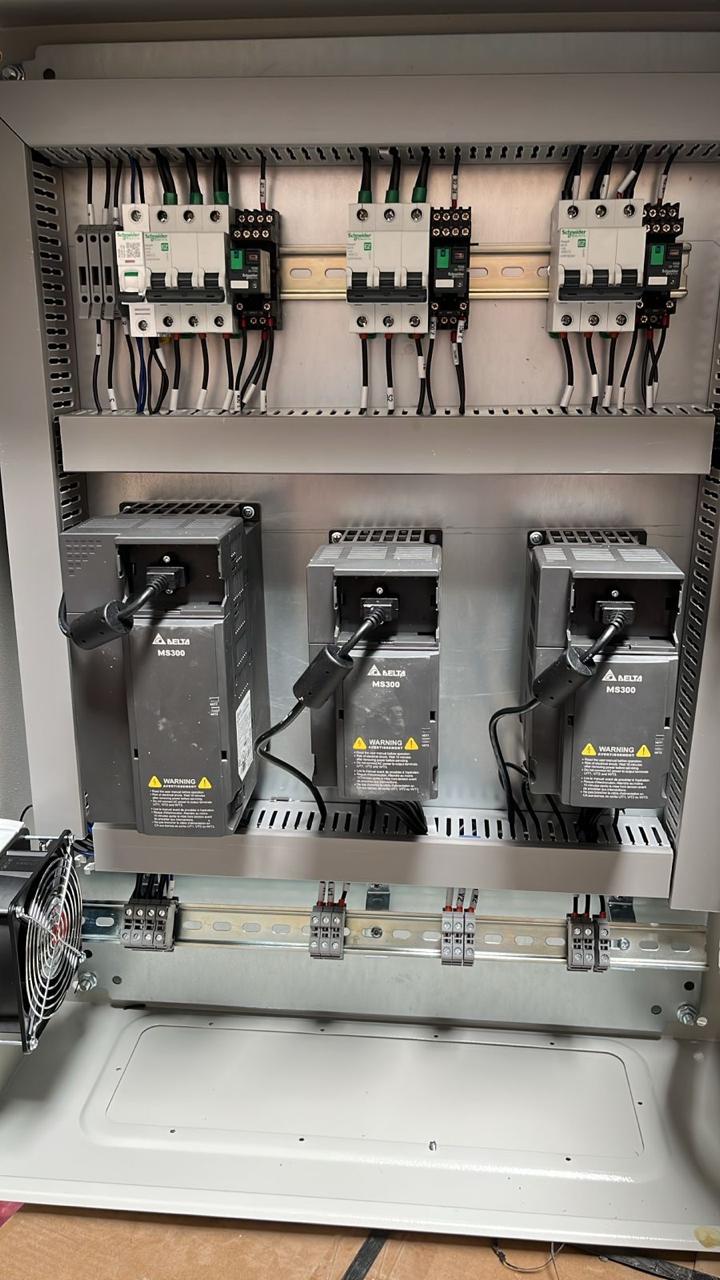

Ventilation control panel with three Delta MS300 drives and Schneider protection devices — Three Delta MS300 drives with individual breaker/contactor branches for fan control.

Water treatment · Delta MS300

Flash and slow mixer control desk

Mixer control desk

A wall-mounted operator desk for a water-treatment mixing process. Three Delta MS300 drives run the flash mixer and slow mixer agitators, with individual Run/Trip indication, speed potentiometers and R-S-T phase indicators for clear operator feedback.

3 × Delta MS300 drives for flash and slow mixer agitators
R-S-T phase indication and individual Run/Trip lamps
Speed potentiometers for manual mixer adjustment
Clean operator layout with engraved labels
Designed for water treatment plant duty
Easy access for maintenance and troubleshooting

Discuss a similar project

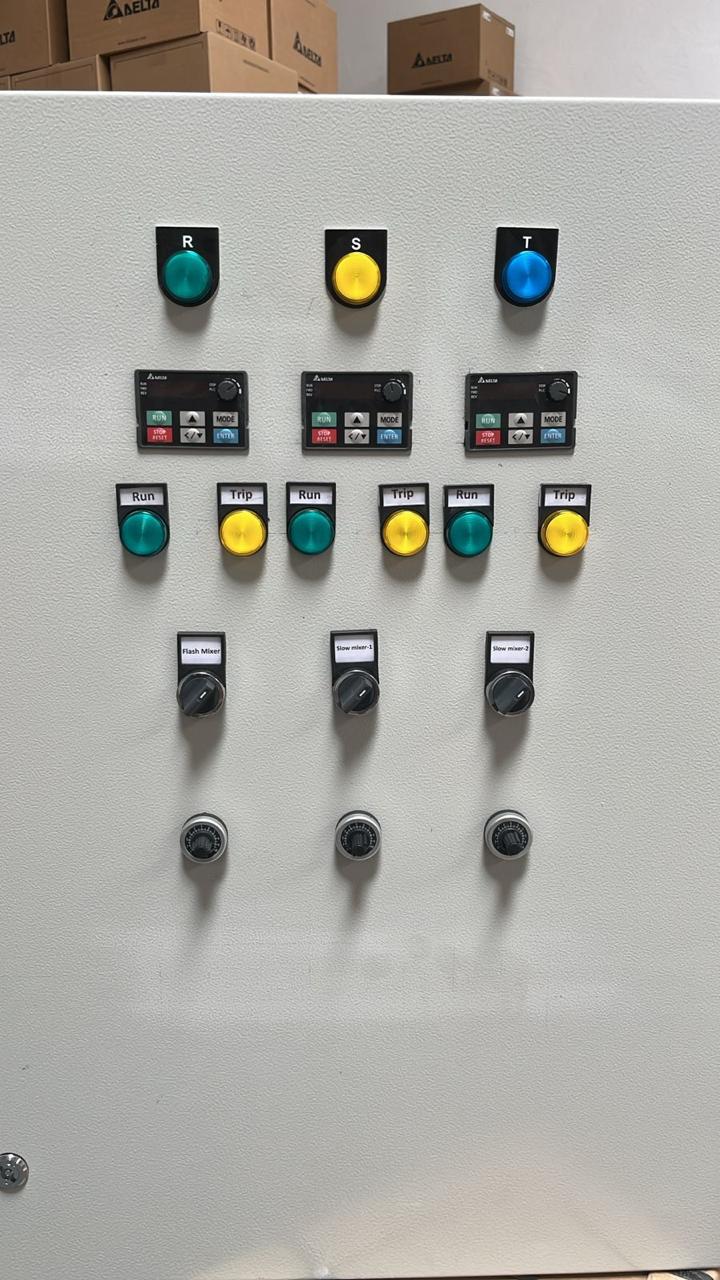

Mixer control desk with three Delta MS300 drives, phase indicators and Run/Trip lamps — Operator desk for flash and slow mixer drives with indication lamps and speed controls.

Parking ventilation · Delta MS300

Garage ventilation drive panel

Multi-fan parking ventilation cabinet

A large-capacity parking garage ventilation cabinet driving multiple exhaust and supply fans. The panel groups Delta MS300 drives in stages, with a dedicated breaker tier, busbar power distribution and forced ventilation to keep drives running reliably under continuous duty.

12+ Delta MS300 drives staged for multi-fan garage ventilation
Top-tier MCB distribution and clear phase-separated busbars
Forced cabinet cooling with multiple ventilation fans
Structured terminal blocks and cable management for easy maintenance
Designed for CO-based parking garage exhaust control
Scalable layout for additional fans and future expansion

Discuss a similar project

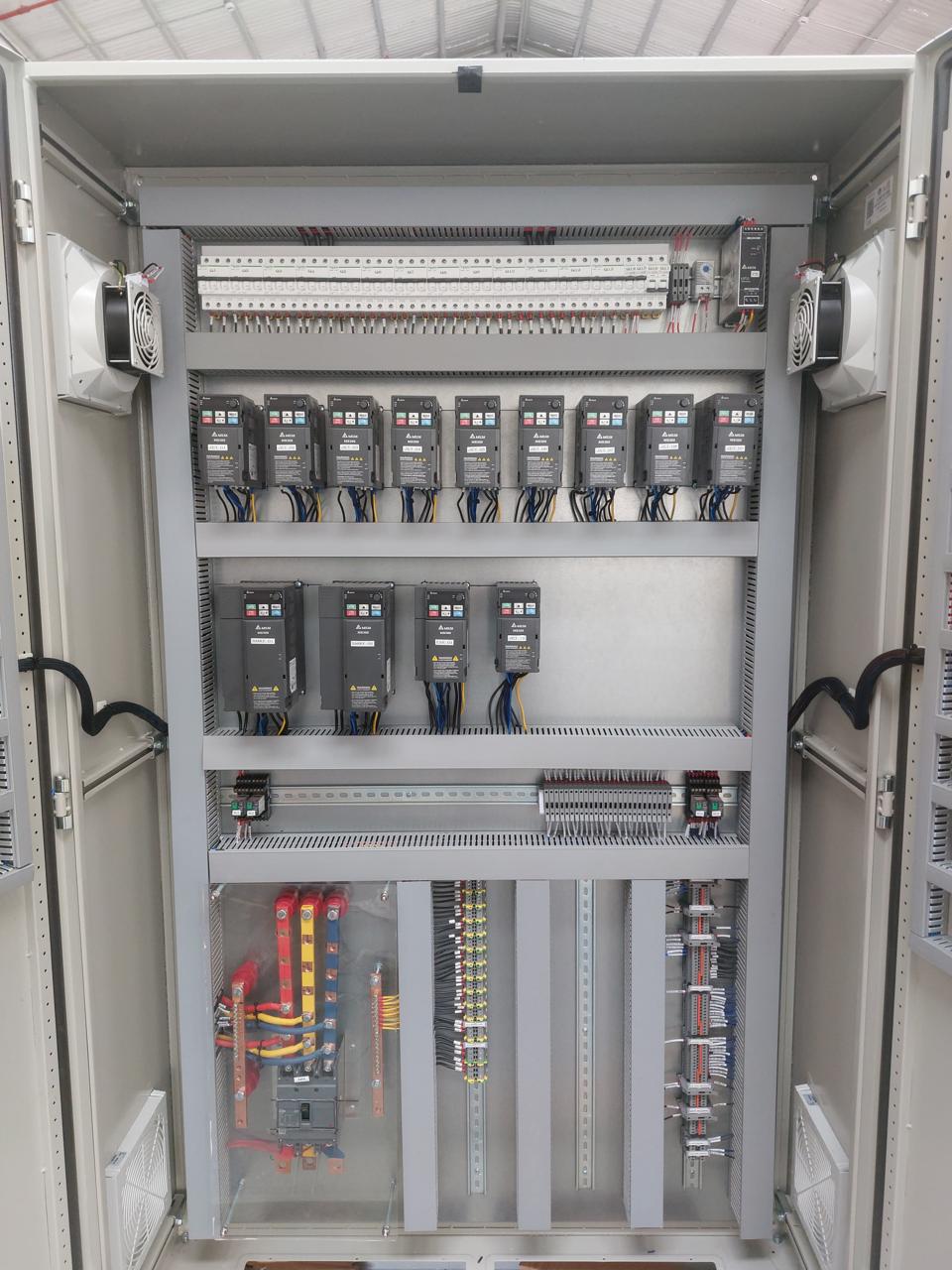

Large garage ventilation panel with multiple Delta MS300 drives and power distribution — Multi-stage Delta MS300 drives with breaker tier and busbar distribution for garage ventilation.
